Pocket Size Digital Oscilloscope - Two 72Mhz Analog Channels and Two Digital Channels (Only Came with 2 Probes) Details

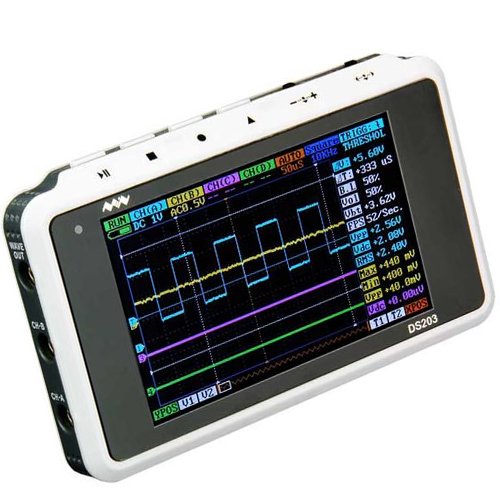

DSO 203 is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks.
It's based on ARM cortex M3 (STM32VCT6), providing 72Mhz analog bandwidth with integrated FPGA and high speed ADC.
Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.

Specification:
Analog channel x 2 : [CH_A] [CH_B];
Digital channel x 2 : [CH_C] [CH_D];
Vertical Scale: 20mV-10V/div (x1 probe);
Vertical solution: 8 bit ;
Input coupling: AC/DC ;
Max input voltage: 80Vpp (x1 probe);
Storage: 4K per channel
Software trigger type: edge, pulse, level (to be added)
Hardware trigger type: edge
Trigger source: CH1/CH2/EXT
Test Signal generater: 10Hz to 1Mhz
Storage: internal 2MB USB disk
Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
Cursor measurement: Level, Voltage
Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
Sampling mode: real time
Sampling rate: 1kSa/s - 72MSa/S
Power: Lipo battery
Dimension: 98 x 60 x 14.5
Weight: 80g (without battery)
color?gray black

Pocket size and light weight. Two 72Mhz analog channels and two digital channels

Signal Generator. Auto Measurement

Various Triggering Option. Easy waveform storage

Firmware upgrade. User applications. Open source

Package list: 1 x DSO203 Quad with Battery, 1 x Mueller Mcx Osilloscope Probe, 1 x Mueller Mcx Digital Probe, 1 x Mini USB Cable
